-7%

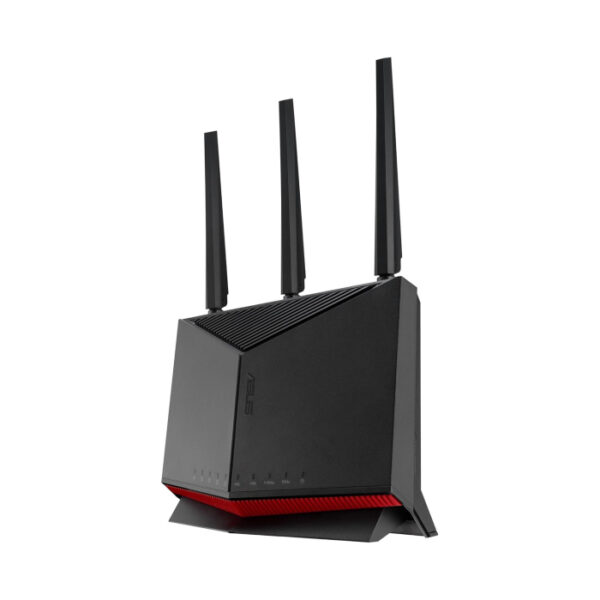

Asus BE6800 Dual Band RT-BE86U Performance Wifi 7 Extendable Router 2.6Hz Quad-Core CPU For Ultra-Fast Network Speed
Original price was: $110.00.$102.00Current price is: $102.00.
SKU
90IG08W0-MO9A0V
Item #
NS028861
Other Products By
Key Features
- Item ID : NS028861
- Brand : Asus
- Wi-Fi Bands : Dual-Band
- Wi-Fi Technology : Wi-Fi 7 (802.11be)
- Wi-Fi Speed : Ultra-Fast (> 3000 Mbps)
- Description
- Reviews (0)
- Store Policies
- Inquiries
Description
| Model No | Asus BE6800 Dual Band RT-BE86U Performance Wifi 7 Extendable Router |
| Part No | 90IG08W0-MO9A0V |
| Network Standard | IPv6 IPv4 WiFi 7 (802.11be) WiFi 6 (802.11ax) WiFi 5 (802.11ac) WiFi 4 (802.11n) IEEE 802.11g IEEE 802.11b IEEE 802.11a |
| Product Segment | BE6800 ultimate BE performance : 1032+5764 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (5GHz): up to 5764 Mbps WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps |
| Antenna | External antenna x 3； Internal antenna x 1 |
| Transmit/Receive | 5GHz 4×4 2.4GHz 3×3 |
| Processor | 2.6GHz quad-core processor |
| Memory | 256 MB Flash and 1 GB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 5 GHz 2.4 GHz |
| Operating Mode | Repeater Mode Media Bridge Mode Access Point Mode AiMesh Node Mode Wireless Router Mode |
| Ports | 1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1 |
| Button | WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button |
| LED Indicator | WAN x1 10G Port x1 LAN x4 USB x1 2.4GHz x1 5GHz x1 Power x1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current |
| AiMesh | • AiMesh Node • Primary AiMesh Router AiMesh |
| Game | Gaming Port OpenNAT (Game Profile) Gear Accelerator Mobile Game Mode |
| Parental Control | Web & Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule “Allow you to block access to unwanted websites and apps.” • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Cilter Rule : 64 |
| Guest Network | Support Guest Network Pro “You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.” Guest Network Connection Time Limit • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5 Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal |
| AiProtection | AiProtection Pro • Infected Device Prevention and Blocking • Two-Way IPS • Malicious Site Blocking • Router Security Assessment |
| Security | VPN DNS-over-TLS Security Scan SSH Firewall Let’s Encrypt WPS AiProtection WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| Wireless | MU-MIMO RADIUS Client Explicit Beamforming Universal Beamforming Airtime Fairness Wireless Scheduler WiFi MAC Address Filter UTF-8 SSID • Maximum MAC Filters : 64 |
| WAN | • PPPoE Relay • IPSec • SIP Pass-Through • H.323 Pass-Through • Static IP • RTSP Pass-Through • Automatic IP • IPSec Pass-Through • L2TP • L2TP Pass-Through • PPTP • PPTP Pass-Through • PPPoE NAT Passthrough : Internet Connection Type : DDNS DMZ Port triggering Port forwarding 3G / 4G LTE dongle WAN Aggregation Dual WAN • Maximum Port Forwarding Rule : 64 • Maximum Port Triggering Rule : 32 |
| LAN | Manually Assign IP Address Wake on LAN (WOL) LAN Link Aggregation IPTV IGMP Snooping DHCP Server • Maximum Manually Assign IP Address Rule : 128 |
| VPN | Support Surfshark Instant Guard VPN Client WireGuard VPN Server WireGuard VPN Fusion VPN Server PPTP VPN Server Open VPN VPN Server IPSec VPN Client PPTP VPN Client Open VPN VPN Client L2TP |
| USB application | • ext4 • ext3 • ext2 • vFAT • NTFS • HFS+ File System : Samba Server Shared Folder Privileges FTP Server Time Machine Media Server AiDisk Download Master AiCloud Safely Remove Disk |
| Administration | New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update Configuration Backup and Restore Diagnosis tools Feedback System System Log |
| Dimension | 235*90*316 mm |
| Weight | 854 g |
| Package content | RT-BE86U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
