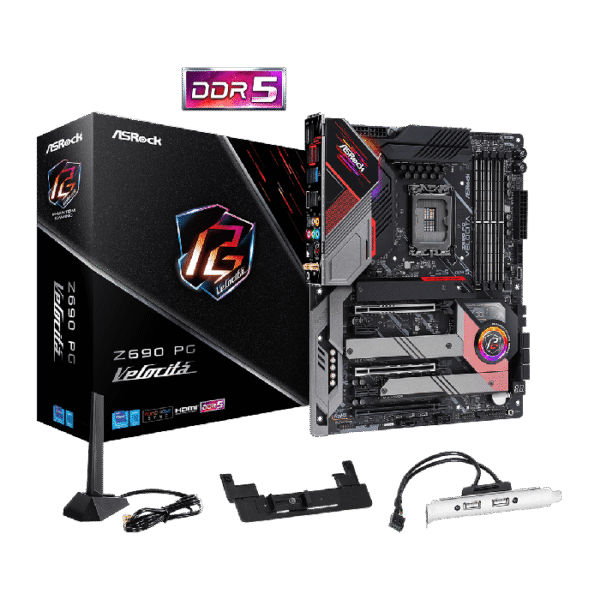

ASRock Intel Z690 PG Velocita DDR5 – Gaming Motherboard – Black

ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)

ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

XXL Aluminum Alloy Heatsink

Premium Power Choke

60A SPS (Smart Power Stage)

Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke)

Nichicon 12K Black Caps (100% Japan-made high-quality conductive polymer capacitors)

I/O Armor

Matte Black PCB

High-Density Glass Fabric PCB

8 Layer PCB

2oz Copper PCB

Killer 2.5G LAN

Digi Power design

17 Power Phase design

Supports Intel^® Hybrid Technology

Supports Intel^® Turbo Boost Max 3.0 Technology

Supports ASRock Hyper BCLK Engine V

Supports IEEE 802.11a/b/g/n/ax

Supports Dual-Band 2×2 160MHz with extended 6GHz band support*

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.3 + High-speed class II

Supports MU-MIMO

Supports Killer LAN Software

Supports Killer DoubleShot™ Pro

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)

Supports Killer LAN Software

Supports Killer DoubleShot™ Pro

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel^® I219V)

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports UEFI PXE

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 7600+(OC)*

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*

– 6 x SATA3 6.0 Gb/s Connectors

1 x HDMI Port

1 x DisplayPort 1.4

1 x Optical SPDIF OutPort

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

6 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)*

2 x USB 2.0 Ports (Supports ESD Protection)

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

1 x BIOS Flashback Button

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)

1 x Power LED and Speaker Header

1 x RGB LED Header*

3 x Addressable LED Headers**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

1 x VRM Fan Connector (4-pin)******

1 x 24-pin ATX Power Connector (Hi-Density Power Connector)

2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector (15μ Gold Audio Connector)

1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

1 x Clear CMOS Button

1 x Dr. Debug with LED

1 x Power Button with LED

1 x Reset Button with LED
